Concealed Frame Curtain Wall
The Concealed Frame Aluminum Curtain Wall System is designed to achieve a seamless glass façade by hiding the aluminum profiles behind the glass surface. Ideal for high-end residential, hospitality, and institutional buildings, this system delivers minimalist aesthetics, energy efficiency, and high structural performance.
features & advantages
Frameless Appearance
Seamless glass surface with concealed profiles offers a modern, minimalist aesthetic.
Custom Geometry
Supports curved, sloped, and irregular façade designs for complex architectural applications.
Advanced Drainage System
Built-in multi-channel drainage ensures water is efficiently discharged, preventing leakage and condensation.
Construction Efficiency
Prefabricated structure eliminates the need for on-site sealant application, unaffected by weather or climate.
High Wind Load Resistance
Engineered for super high-rise applications, ensuring safety and performance.
Long-lasting Finish
Fluorocarbon coating and anodizing options resist UV, corrosion, and environmental damage.
Product description

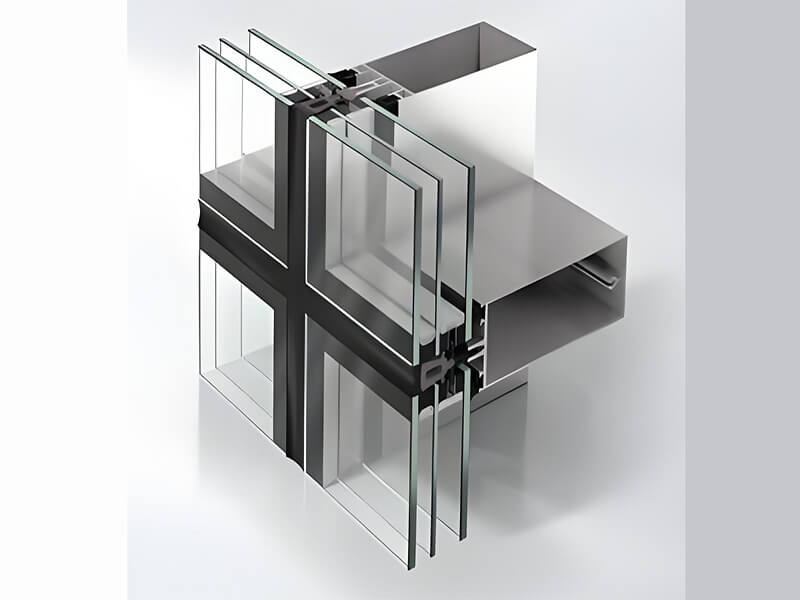

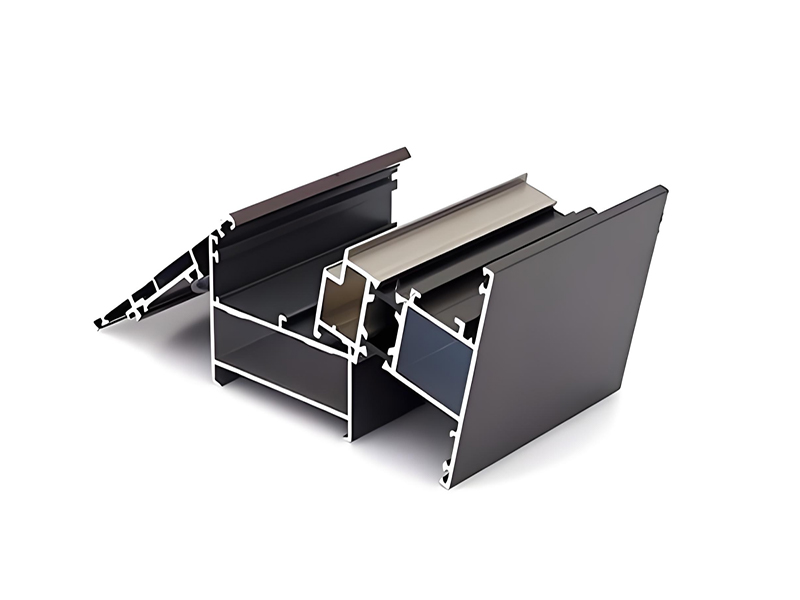

Our Concealed Frame Curtain Wall System is constructed with high-strength 6063-T5/T6 aluminum profiles and utilizes structural silicone glazing (SSG) to bond glass to the frame. The external surface forms a continuous glass façade without visible metal frames, delivering clean and contemporary architectural expression.
Key technical options include:
-
Glass Types: Insulated glass units (IGU), laminated, Low-E, or triple-glazed glass for energy efficiency
-
Surface Finishes: PVDF fluorocarbon coating, powder coating, anodizing
-
Thermal Breaks: Optional polyamide thermal break system for improved insulation
-
Hardware Compatibility: Supports hidden operable window inserts
-
Installation Systems: Compatible with unitized or stick-built construction methods
The system conforms to EN, ASTM, and regional façade standards, and is supported by BIM modeling, systemized fabrication tools, and technical consulting. It’s ideal for developers, façade contractors, and architects seeking a minimalist, high-performance curtain wall solution.
